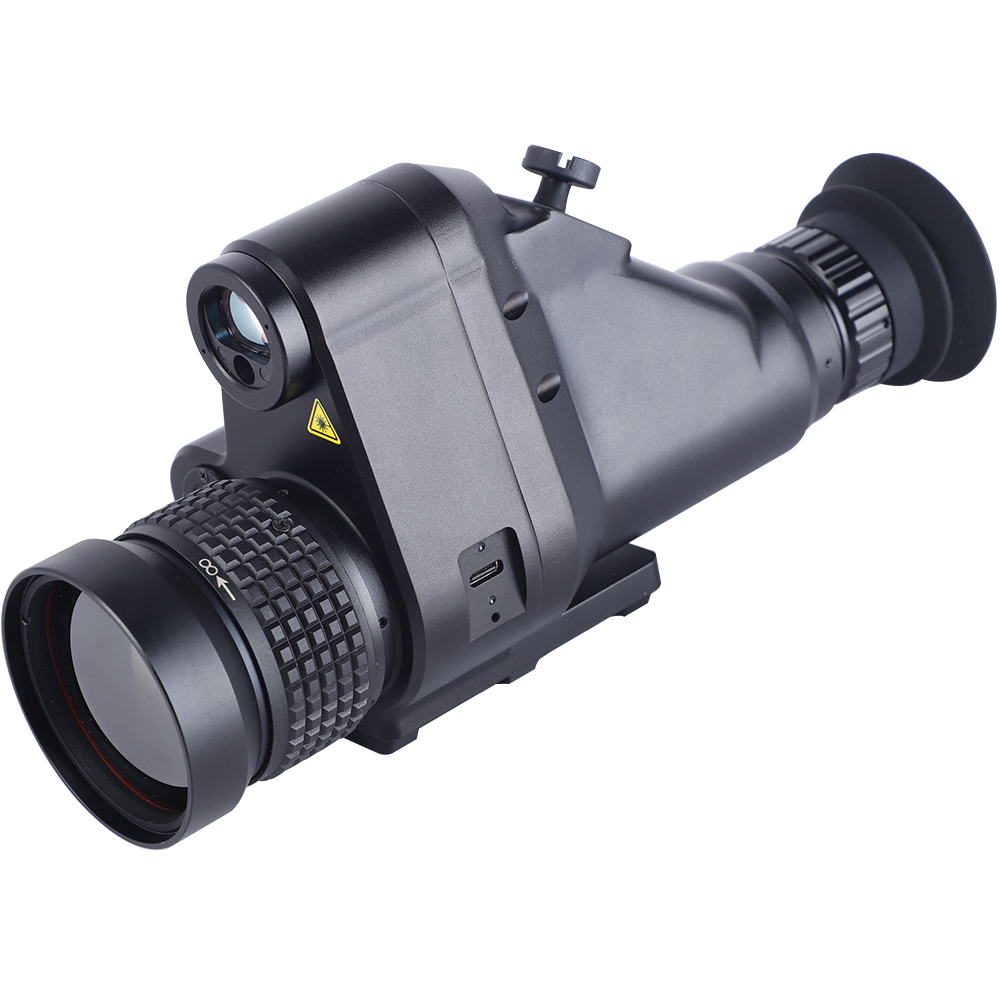

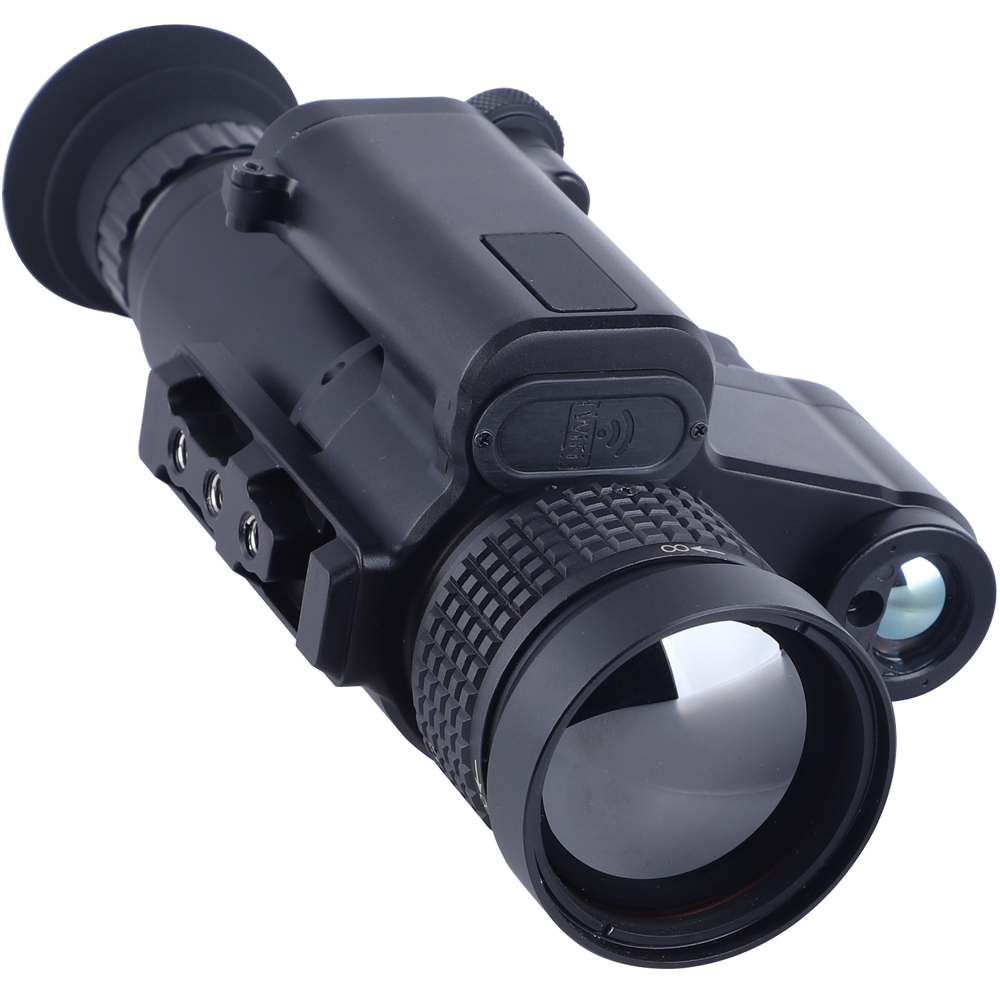

Night Vision Monocular Thermal Imaging Scope with Laser Range FinderInfrared Thermal + Laser Rangefinder device for handheld or fixed observation, night reconnaissance, evidence collection, and target search. Equipped with photo/video recording and long-duration video storage.
Model:JAXY N2602
Size: L225×W79×H111mm
Weight:＜800g (with battery)
Housing Material: 6061
Operating Temperature: -30°C～+60°C
Vibration: Swept 5-200-5Hz, Acceleration 2.5g
1. Thermal System:
Detector type: UnCooled VOx FPA
Detector specification: 640* 512@12 μm
Display Screen: 1024 × 768 0.39 "OLED X1
Working band: 8-14 μ m
Frame rate :50Hz
Sensitivity:< 50mK@300k F#1.0
Boot time: <6 seconds
Noise Reduction: digital filtering
Gain adjustment: automatic/manual adjustment
Electronic zoom 1x/2X/4X
Pseudo color : White Hot / Black Hot / Rainbow / Metal / Green Hot, etc.
Lens focal length f=50mm F1.0

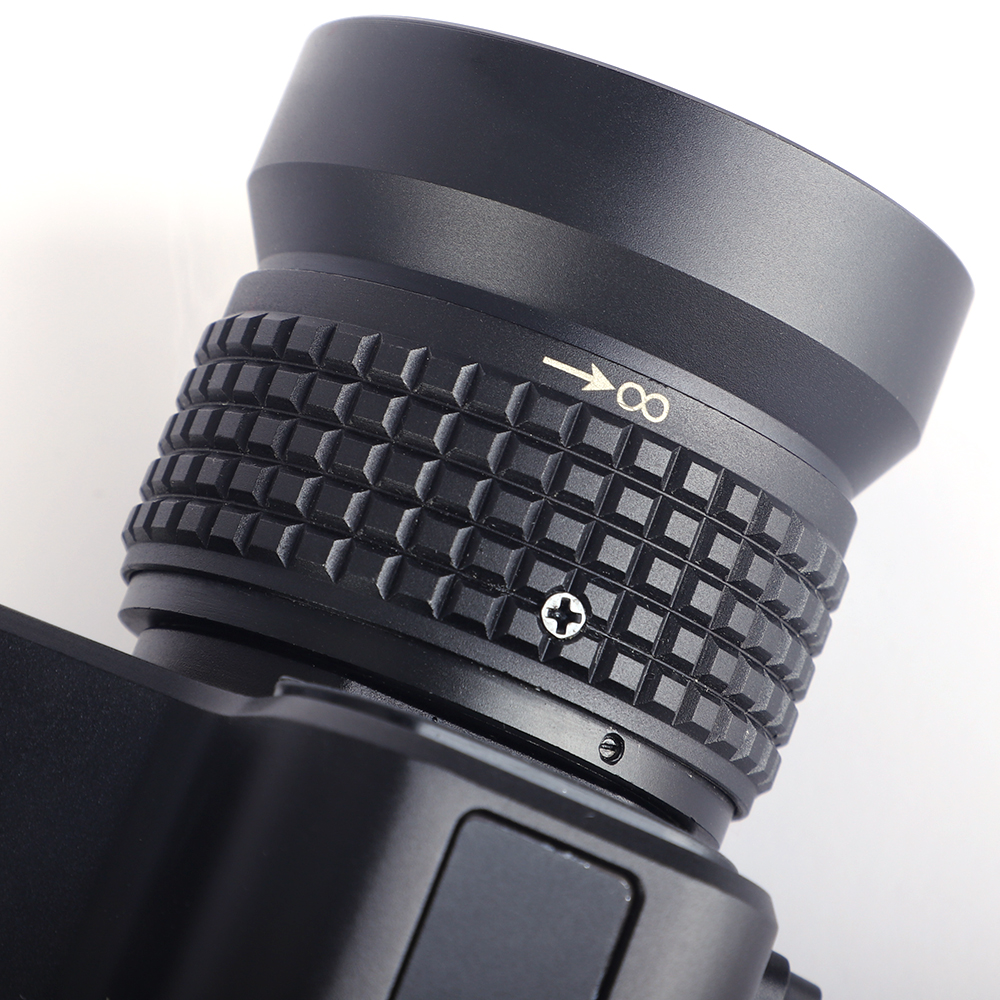

Manual focusing method
Photo function: JPEG format photos
Recording function: MPEG4 format video
Storage and output 32GB; USB-A 2.0
Personnel (1.7m x 0.5m) detection: 1.8km
Identification: 0.5km
Vehicle (2.3m x 2.3m) :Detection: 6km
Identification: 1.8km
2.Laser Range Finder
Wavelength: 905nm / 1535nm (Eye-safe, Class 1)
Range Distance: 1.2km (Optional 2km)
Accuracy: ±1m
Efficiency: ＞98%
3, Power

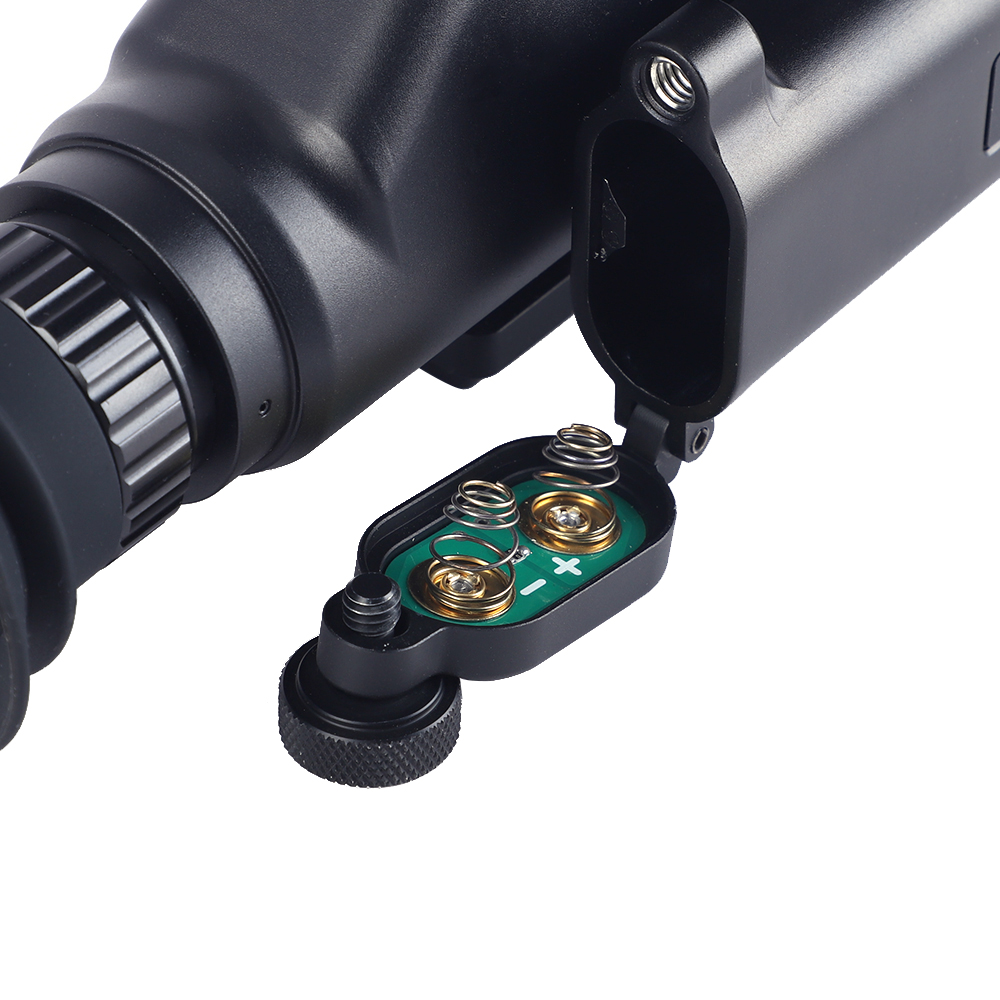

Power Supply: 2×18650 Rechargeable Li-ion Battery 3.7V @8000mAH
Operating Voltage Range: DC：6V～8.4V
Operating Power Consumption:＜2.5W
Operating Hours: Continuous Operating Hours: ≥8h
ADDITIONAL FEATURES
Wifi:Optional
Compass:Optional
