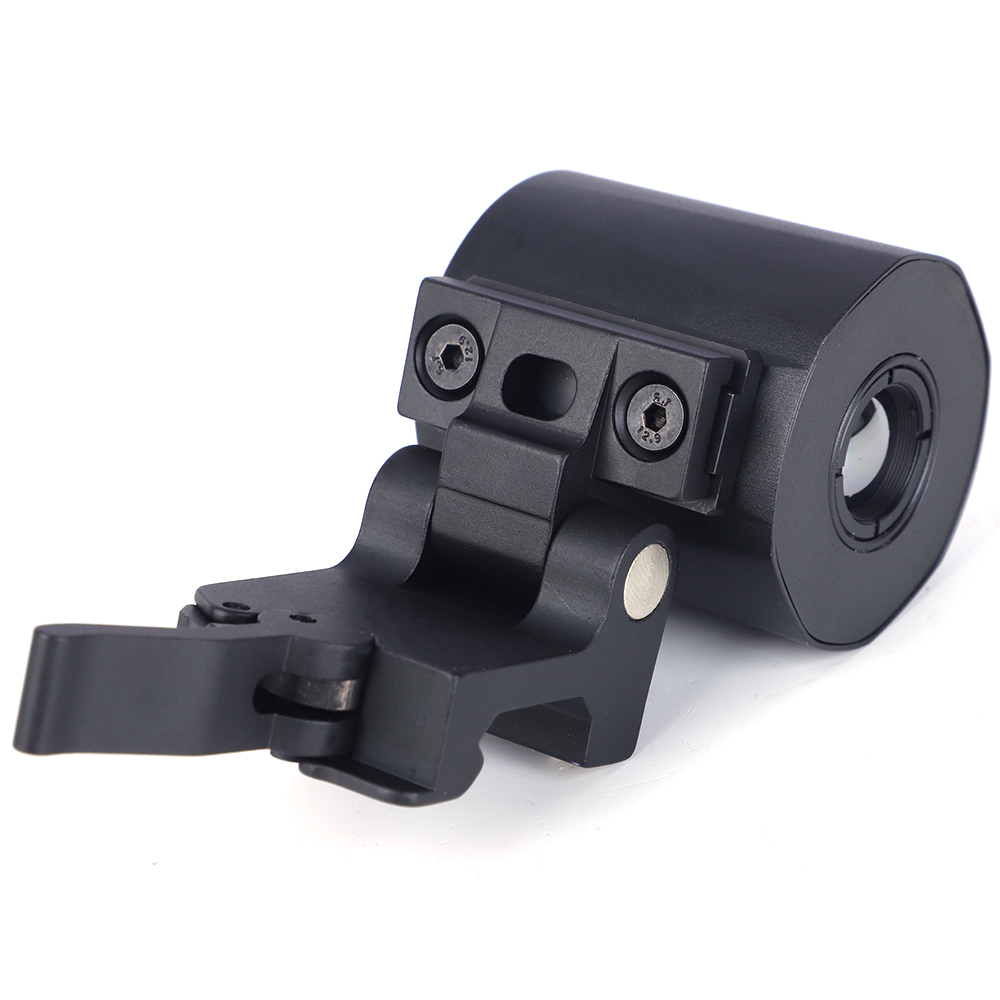

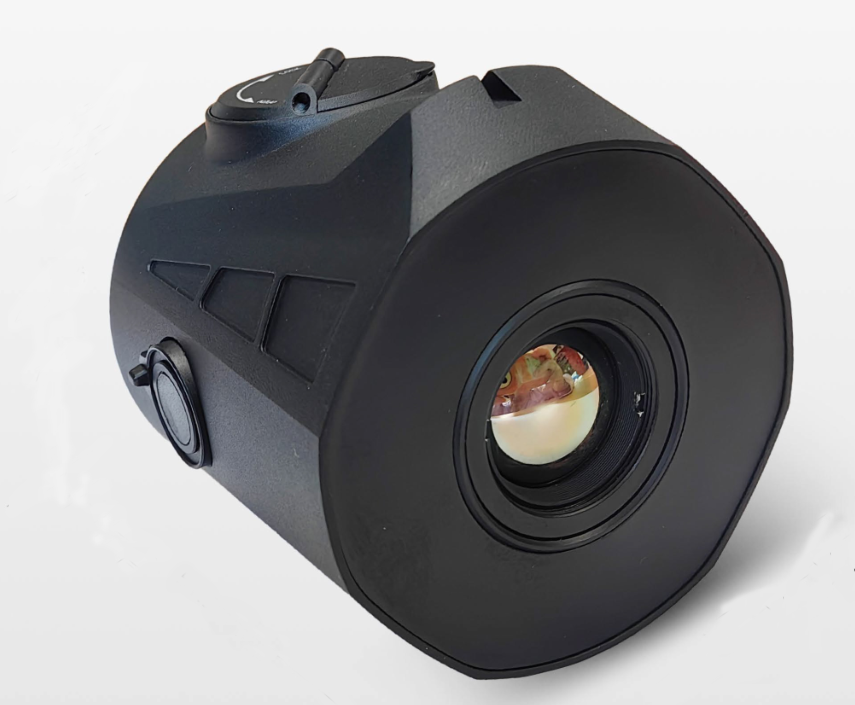

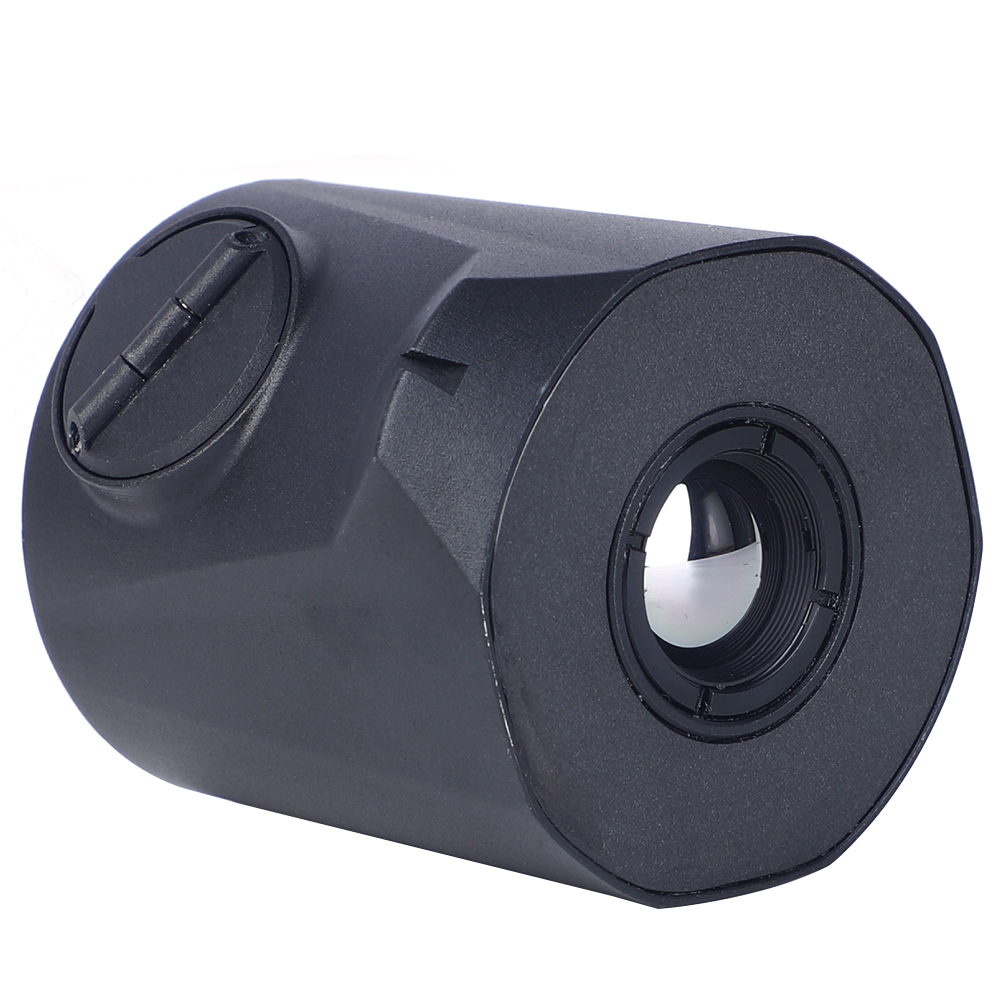

Miniature Night Vision Monocular Portable Mini Thermal Imaging Scope
General
Model:JAXY QM2502
Image Sensor: Uncooled Focal Plane Arrays
Detector specification 256*192@12 μm
Working band 8-14 μ m
Frame rate 60Hz
Sensitivity: ≤20mK (25 °C，F#=1.0)
Waterproof range: IP67
Working temperature: -20 °Cto +50。C(-4 °F to 122°F)
Size: 51.5×51.5×47.5mm/115g (without battery) , battery:18g
Electronic zoom 0.5 -1X(2x)
5 types of false color black hot/white hot/etc
Lens focal length f=50mm F1.0
Field of view angle,degrees/m@100m: 13.5°× 10.1°/23mX17m
Detection range:700m
Mini focusing distance: 0.5m
Display:1.43 ", 466X466,OLED
Touch Screen:Support
Brightness Adjustment:YES
FFC (Flat Field correction mode):Auto, Manual, External Correction
System/Function
Record video:Support
Capture Snapshot:Support
Standby mode:Support
Storage:Build-in EMMC (32G)
Recoil-activation recording:Yes
Max Recoil:1000g/0.4ms
Zeroing Profiles: 3
Power Supply
Battery:CR123,16340
Battery Time:≥5h (25 °C)
Type-C Power Supply:5V DC, 2A Supports External Power Supply
Data Interface:Type-C
