Description

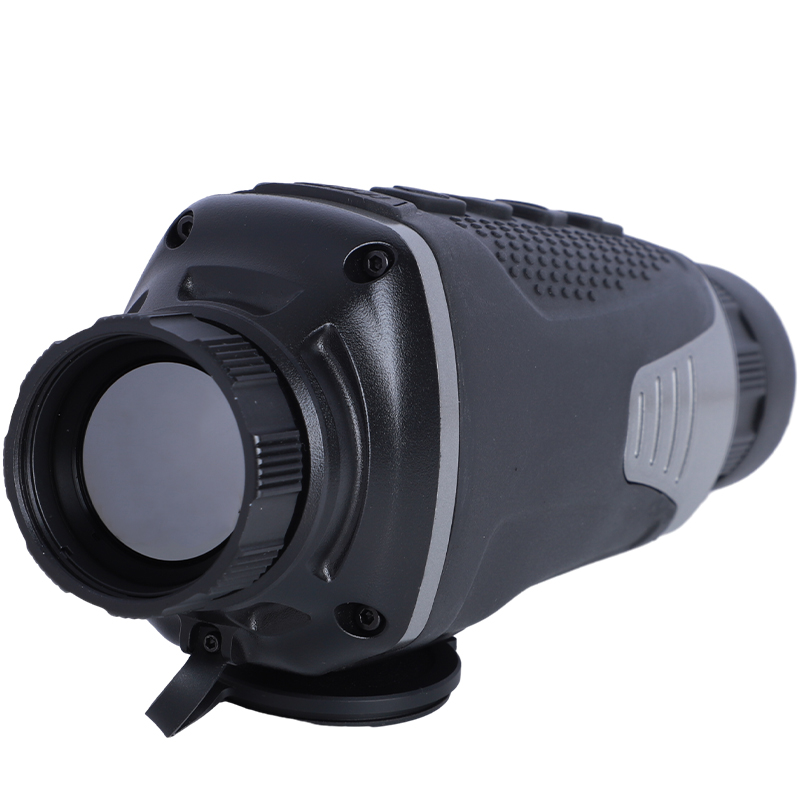

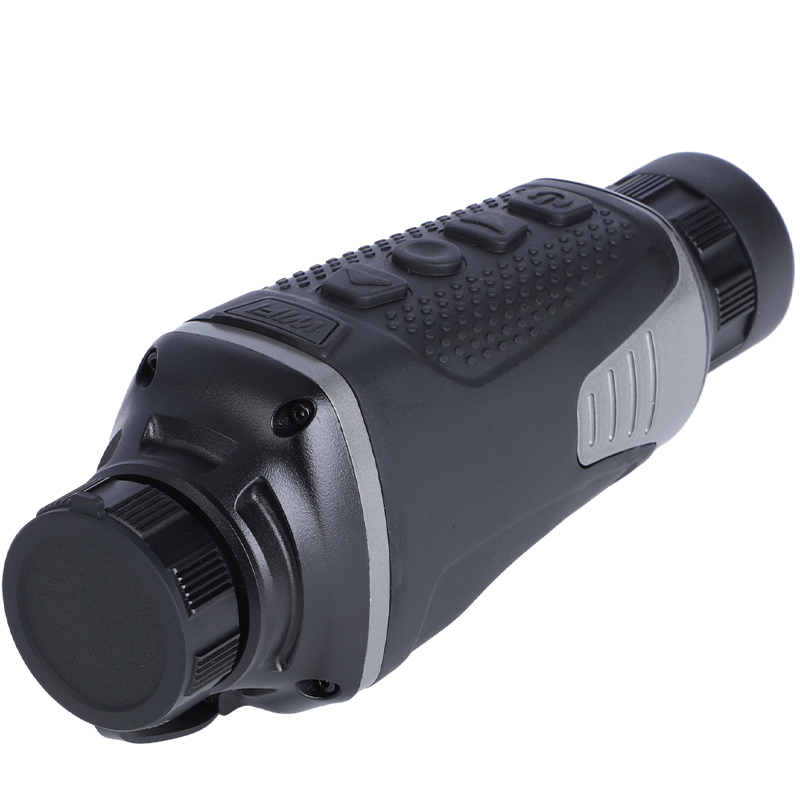

Night Vision Monocular Thermal Imaging Series
Model:Trieagle 2301 C35 /C35 PRO/C35 MAX
Size:205.5*58.6*71.3mm/ ≦320g/350g/380g (without battery)
Objective len:19/25/33mm
FOV(35mm):13.82°x10.39° /10.53°x7.9°/7.53°x5.65°
E magnification:x1-x4
Detect range,m (Human body 1.7mX0.5m,P(n)=99%): 360 m/590m/820m
Detect range,m (Vehicle 2.3mX2.3m,P(n)=99%): 450m/790m/1100 m
Detector Specification:
Type: Uncooled VOX Sensor
Resolution ,Pixels:384X288
Pixels size,μm:12
Frame rate,Hz: 50
Screen Specification:
Type: OLED
Resolution ,Pixels:1024X768
Operating Temperature:-20 to 50℃
Max Operating time,H (t=22℃): 5.5 H
Battery Type: Build-in Li-ion Battery
Battery Voltage: 3.6 V
Ingress Protection:IP67
Charge Interface: Type-C
Curso: Support
Hotspot tracking: Suppot
Laser ranging: None
Memory Capacity: None/32GB/32GB
Video recording: None (C35)/ support (C35 PRO,C35 MAX)
Wifi,Screen shot: None (C35)/ support (C35 PRO,C35 MAX)
