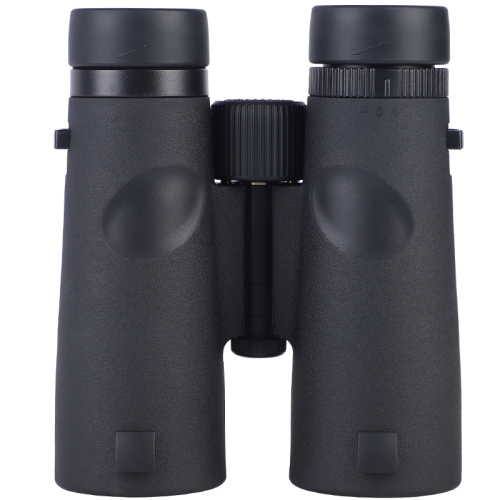

| Product Type | JAXY D2207Z 8.5X42EDF | |||
  |
||||
| Magnification | 8.5× | |||
| Body material | PPS | |||
| Armor material | (NBR+PVC) | |||
| Color | Black,Military green | |||
| Objective lens Ø | Φ42 | |||
| Ocular lens Ø | Φ24 | |||
| Exit pupil Ø | Φ5.1mm | |||
| Exit pupil distance (mm) | 17mm | |||
| Field of view (°) | 7.8° | |||
| Field of view (at 1000M) | 136m | |||
| Field of view (at 1000yds) | 408t | |||
| Diopter system | Right diopter ring | |||
| Interpupillary distance | 56～74mm | |||
| Focus System | Center Focus | |||
| Focusing lens | Eye. in the right | |||
| Diopter compensation | -4 To +4 Diopter | |||
| Focusing Adjustment | -4 To +8 Diopter | |||
| Prism System | Roof prism | |||
| Prism Glass Material | BaK4 | |||
| Optical Configuration | Objective lens | 3E2G | ||
| Ocular lens | 4E3G | |||
| Lens Type | Spherical Lens | |||
| Optical Material | All optical glass | |||
| Lens coating | Coating Condition | Fully Multi Coating | ||
| Coating Spec. | 400-700nm,R＜0.5%(AVG) | |||
| Prism coating | Coating Condition | AR Coating +Aluminized |
||
| Coating Spec. | 420-680nm,R＜1.0%(ABS),550nm（MGF2)。 | |||
| Water/Fogproof | ▇ Yes □ No | |||
| Gas Filled | ▇ Nitrogen □ other | |||
| Eye cup | Type | ▉Twist up □Fold down | ||
| Material | NBR | |||
| Eye caps | Type | ▉ Conjointed □ Seperated □ Other | ||
| Material | (NBR+PVC) | |||
| Objective Cover | Type | □Conjointed ▉ Seperated □ Other | ||
| Material | (NBR+PVC) | |||
| Adapt to tripod | ▉ Yes □ No | |||
| Strap | ▉ Yes □ No | |||
| Soft case | Type | □ Neutral ▉ Special □ Other | ||
| Material | 1200D Oxford cloth bag | |||
| Strap | Type | □ Neutral ▉ Special □ Other | ||
| Material | 25mm of belt | |||
| Cleaning cloth | ▉ Yes □ No | |||
| Instruction manual | ▉ Yes □ No | |||
| Packaging | ▉ Yes □ No | |||
| Size(Length×Width×Height) | 150×53×128mm | |||
| Weight approx | 650g |
|||
