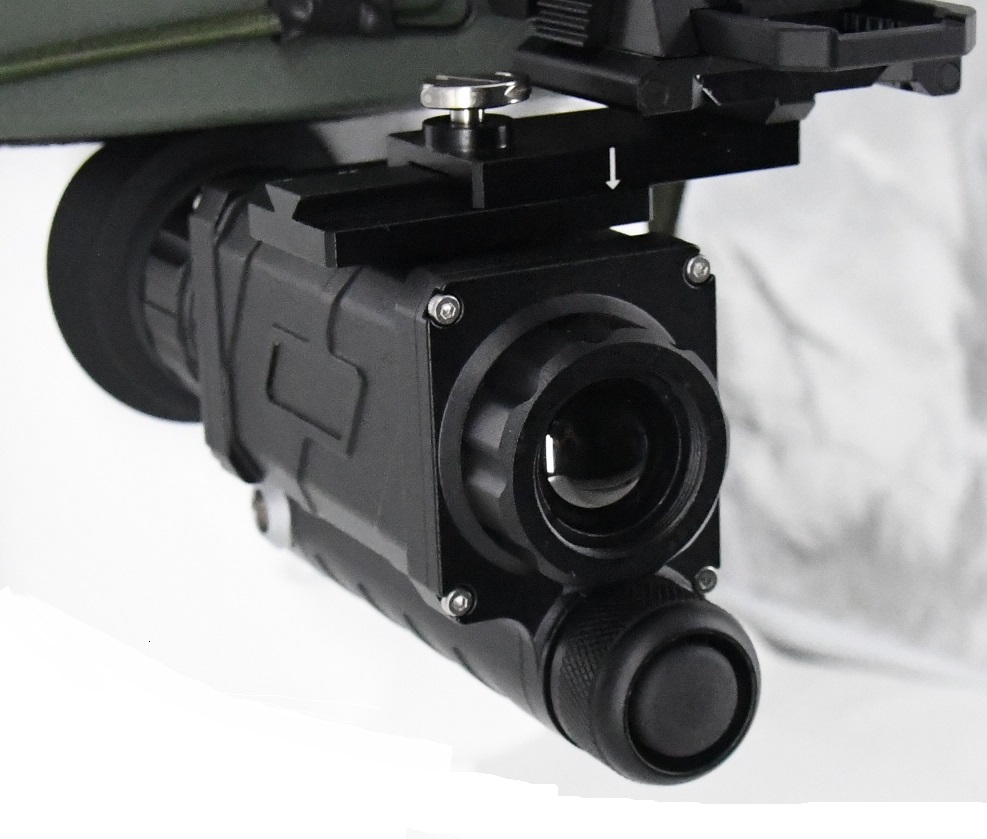

Headmount Helmet Night Vision Monocular Thermal Imaging Scope JAXY QM2510HM
Application environment:Night observation,low light environment etc.
Thermal systerm?
Model:JAXY N2510HM
Image Sensor: Uncooled Vox Focal Plane Arrays
Detector resolution: 640*512 px
Working band: 8-14 μ m
Pixel pitch: 12 μ m
Frame rate: 50Hz
Sensitivity: ≤40mK
Waterproof range: IP66
Working temperature: -30 °C to +55°C (No condensation)
Size: 143×60×85mm/430g (including battery)
Electronic zoom: 1-8x
5 types of false color black hot/white hot/rainbow/ Iron etc
Lens focal length f=19mm F1.0
Field of view angle: 22.8°× 18.3°
Detection range:700m (human 1.7x0.5m), 2100m (Vehicle 3.0x1.5m)
Recognize range:230m (human 1.7x0.5m), 700m (Vehicle 3.0x1.5m)
Focusing distance: 1m--infinity
Image Display:
Display:2X0.39 ", 1024X768,OLED
Eyepiece magnification: 15X
System/Function
Record video:Support
Capture Photo:Support
Wifi:Support
Storage:Build-in EMMC: 32G/64G
Data Transfer: USB 2.0

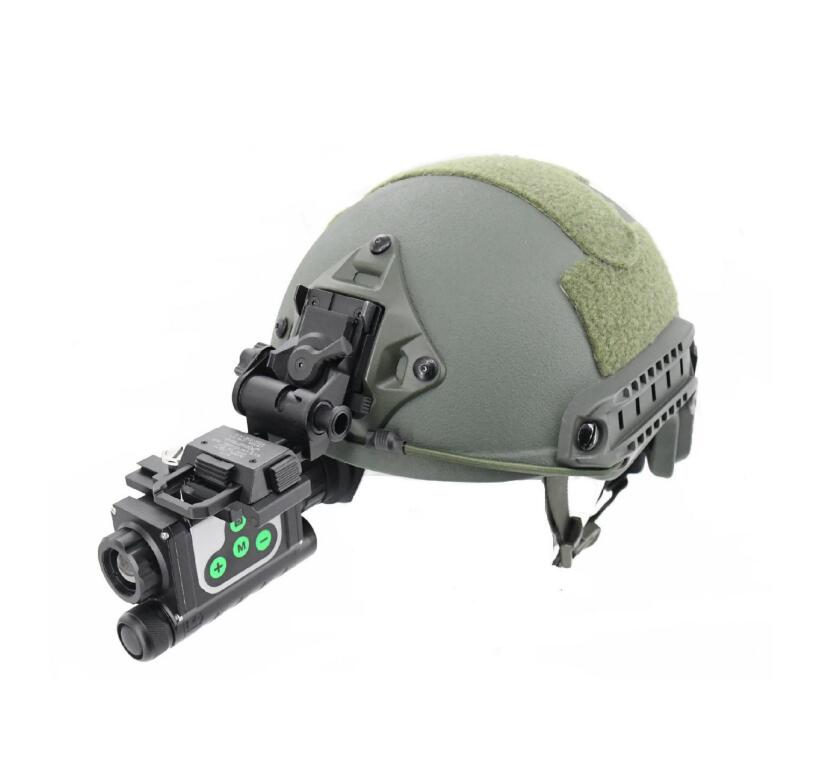

Mount adaptor:L4G24 NVG Mounting
Power Supply
Battery: 3.7V, 3400 mAh (1X 18650 Li-ion
Battery Time: 4.6h about
